Pressure Transmitter

MP402

Introduction

Piezo-Metrics' Model MP402 is a miniature, low cost, general use pressure sensor that automatically compensates for line resistance and power supply changes. This transducer is made of corrosive resistant titanium (6AL4V) and utilizes high reliability bulk type semiconductor strain gages bonded directly to the inside surface of the machined diaphragm.
Absolute or sealed reference sensors are available as an option. The hermetic header is located just behind the strain gage diaphragm section of the sensor, sealing the sensitive gages to an inert environment which dramatically increases stability and reliability. Consult the factory for special temperature or pressure ranges and high-vibration resistant options. Long term stability versions are available.


Application

  • Test & measurement equipment
  • Production equipment & controls
  • Energy Controls
  • Laboratory instruments & equipment
  • Liquid level
  • Calibration Equipment

    • Performance (Pressure) Options (All Values Maximum)

    A

    B

    C

    D

    Units
    Balance (Zero) 4.00±0.50 4.00±0.30 4.00±0.20 4.00±0.20 mA
    Full scale sensitivity 16.00±0.50 16.00±0.30 16.00±0.20 16.00±0.20 mA
    Static Error Band .50 ±.25 ±.25 ±0.25 %FS *BFSL
    thermal Balance (zero) shift .02 ±.01 ±.01 ±0.005 %FS/°F
    Thermal Sensitivity Shift .02 ±.01 ±.01 ±0.005 %FS/°F
    Long Term Stability ±2.00 ±2.00 ±2.00 ±2.00 %FS/Year
    *BFSL=Best Fit Straight Line

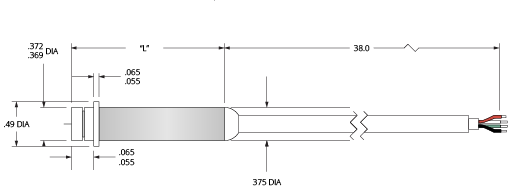

    Mechanical

    Standard Pressure Ranges 200, 300, 500, 1K, 2K, 3K, 5K, PSI
    Non Standard Pressure Ranges 5, 10, 15, 20, 25, 30, 50, 100, 150, 250, 10K PSI
    Other ranges possible Consult Factory
    Over Pressure (No change out of spec.) 2.0x Range
    Usable Pressure (Small change in balance) 3.0x Range
    Burst Pressure 6.0x Range

    Environmental

    Storage and Operating Temperature 0° to 180° F
    Compensated Temperature Range 30° to 130°F
    Acceleration (Consult factory for high vibration options) 100g’s any axis
    Media Compatibility (wetted surface) Liquids & Gases compatible with Titanium
    6AL4Ve
    Other Temperature Compensated Ranges Consult Factory

    Electrical

    Input Voltage (Standard) 24 VDC
    Input Load Resistance (Standard) 500 Ohms
    Maximum Input Voltage 30 V for short periods
    Insulation Resistance Minimum 50 MOhms @ 50 VDC
    A graph showing the Operating Range

    Ordering Guidelines and Examples

    A > B > C > D > E

    MPT 402 > C > 500 > A > L2
    A. Model (MP402) Model MP402-C-500-A-L2 Is a model Transducer with a C performance option.
    Pressure range 500 psiA that has a sealed back end to Absolute, with a long term stability option added.
    B. Performance specification
    C. Pressure Range PSI

    Long Term Stability Options
    L1 < 0.10% FS/Year
    L2 < 0.20% FS/Year
    L5 < 0.50% FS/Year
    L10 < 1.00% FS/Year
    D. Header option
      G = Gage (no Header)
      A = Absolute
      R = Sealed Reference
    E. Long Term Stability Options (if required)
