SS Backed Semiconductor Strain Gages

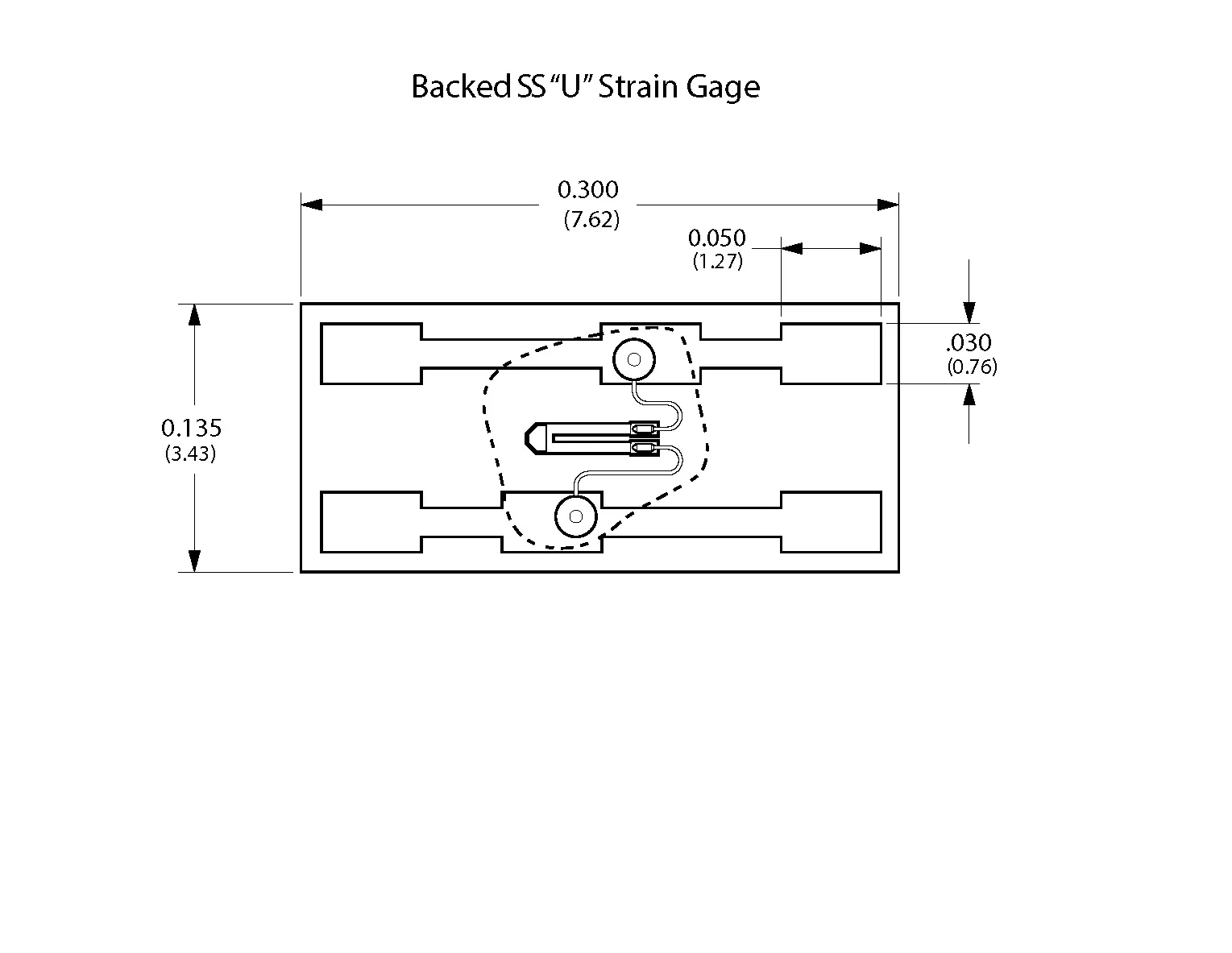

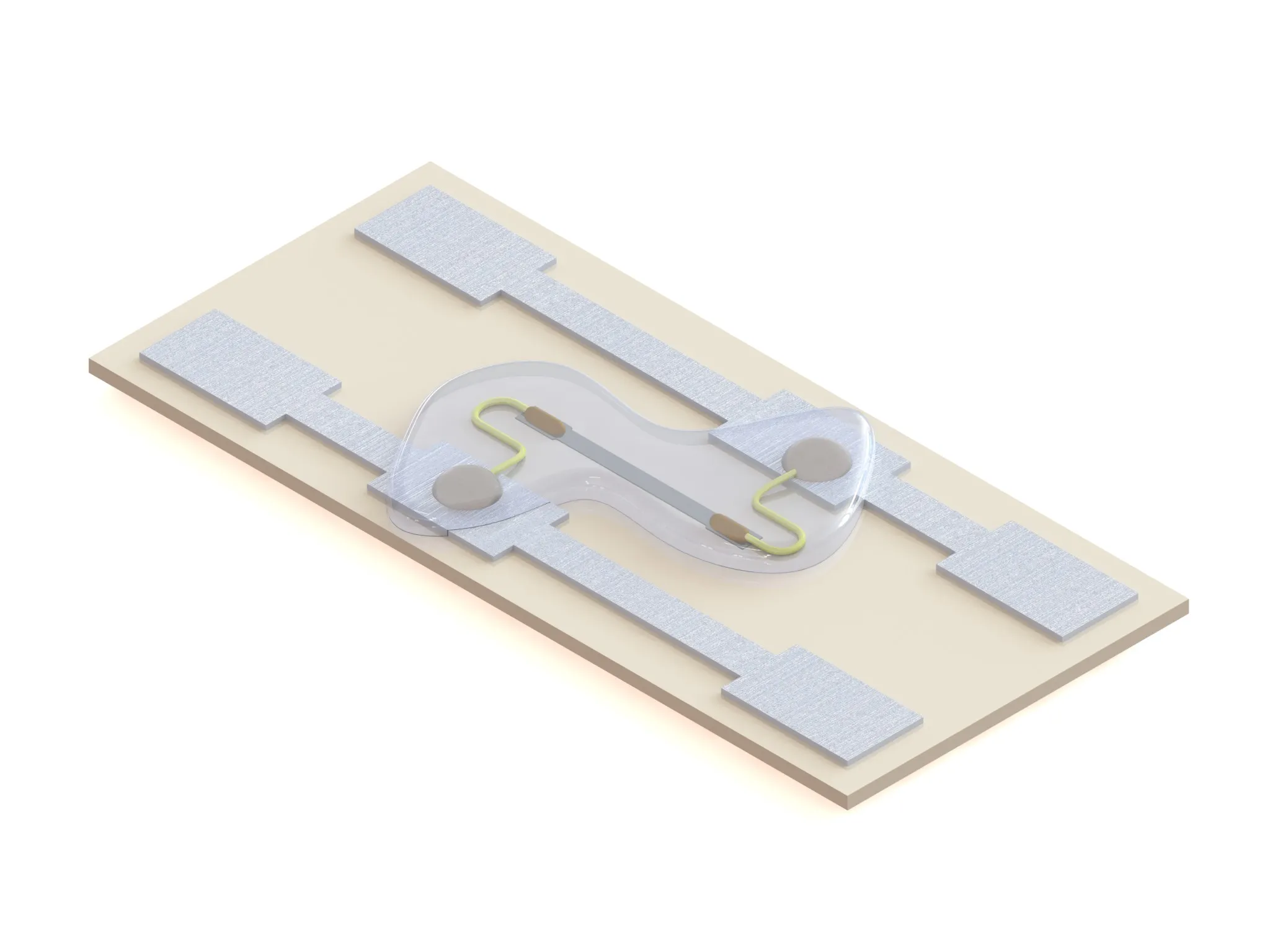

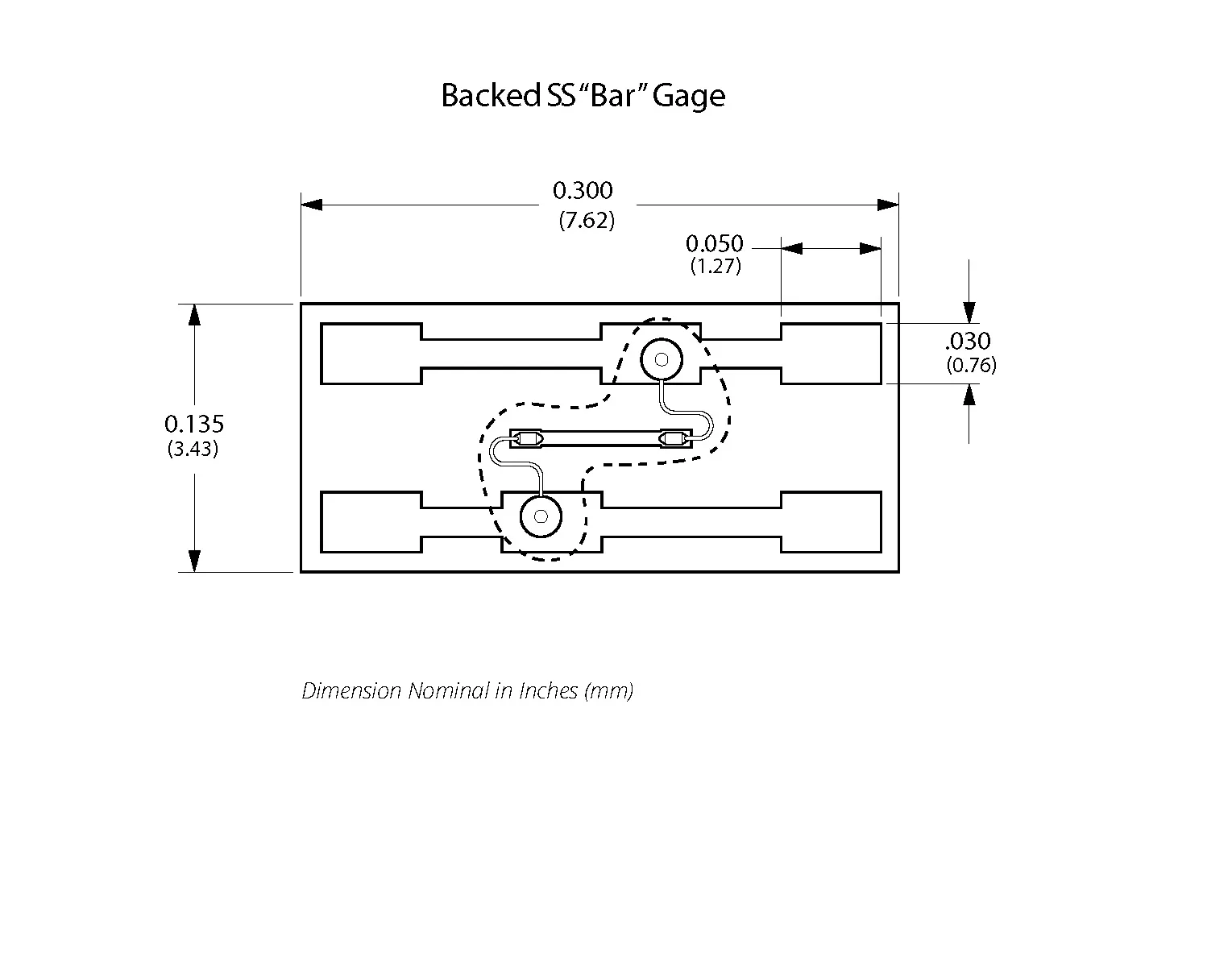

Piezo-Metrics semiconductor Bar & U strain gages are available pre-mounted, or "Backed", on a flexible insulated circuit substrate. Our SS semiconductor strain gages have been found to have 50 to 75 times greater sensitivity than that of metal foil gauges. Multiple thermally matched backed gages can be ordered to form a custom configuration where all the backed gages are thermally matched to each other. The backed SS gage helps simplify the installation of strain gage sets and provides flexibility for many applications. The insulated circuit is flexible enough to bend around a rod as small as 0.5 inches (12.7 mm) in diameter without damaging the gage.
Key Specifications
- Available gage types: Most SS Bar & SS U strain gage sizes
- Gage resistance: 15 Ohm to 10,000 Ohms
- Gage set matching: up to 16 backed gages
- Flexibility: Flexible enough to bend around a rod as small as 0.5 inches (12.7 mm) in diameter
- Sensitivity: 50 to 75 times greater sensitivity than metal foil gauges
- Material: Flexible insulated circuit substrate (FR-4 TG-250)
- Configuration options: Multiple thermally matched backed gages available
- Note: See SS-Bar & SS-U Semiconductor Strain Gages for full gage specifications
