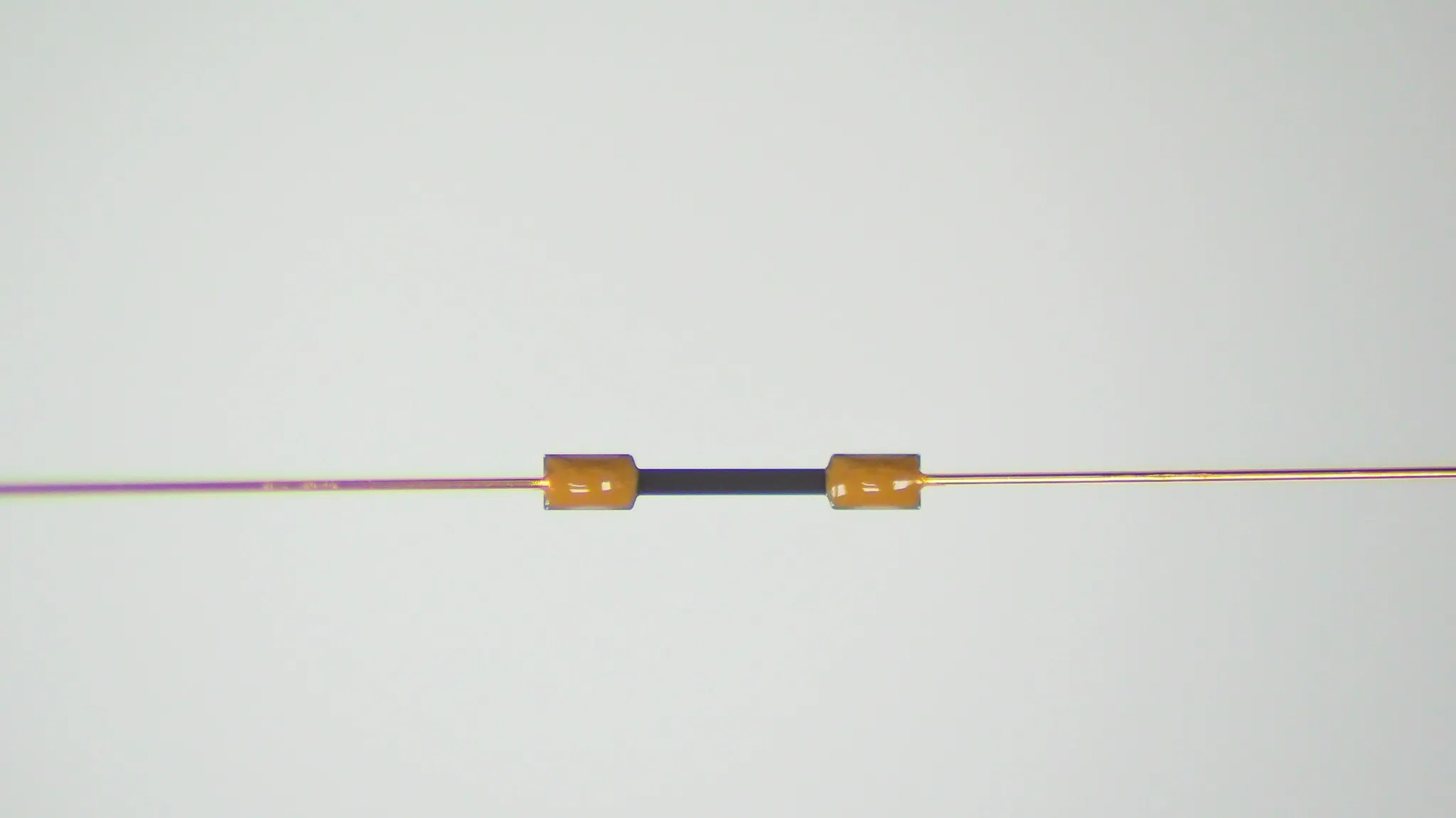

SC Bar Semiconductor Strain Gages
The Piezo-Metrics SC Bar semiconductor strain gages are fabricated using our newest technological process for our "P" doped bulk silicon. Precision_Matched™
Key Specifications
- Available gage length of 0.060 in. long
- Gage resistance of 500 Ohm or 1000 Ohm

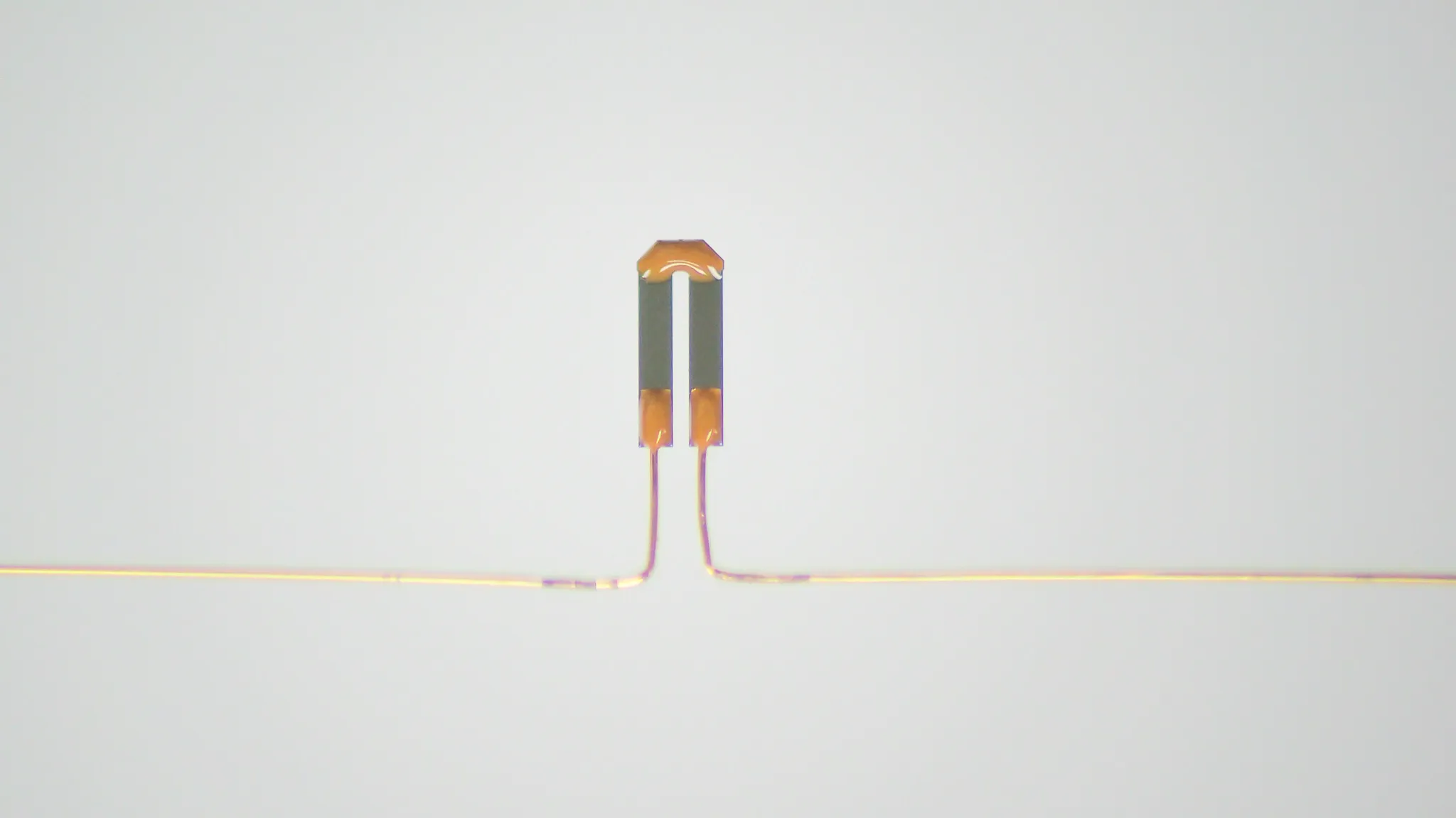

SC U Semiconductor Strain Gages
The Piezo-Metrics SC U semiconductor strain gages are fabricated using our newest technological process for our "P" doped bulk silicon. Precision_Matched™
Key Specifications
- Available gage length of 0.047 in. long
- Gage resistance of 500 Ohm or 1000 Ohm
SC Bar "Leadless" (LL) Semiconductor Strain Gages
The Piezo-Metrics SC Bar "Leadless" semiconductor strain gages are fabricated using our newest technological process for our "P" doped bulk silicon. Precision_Matched™
Key Specifications
- Available gage length of 0.060 in. long
- Gage resistance of 500 Ohm

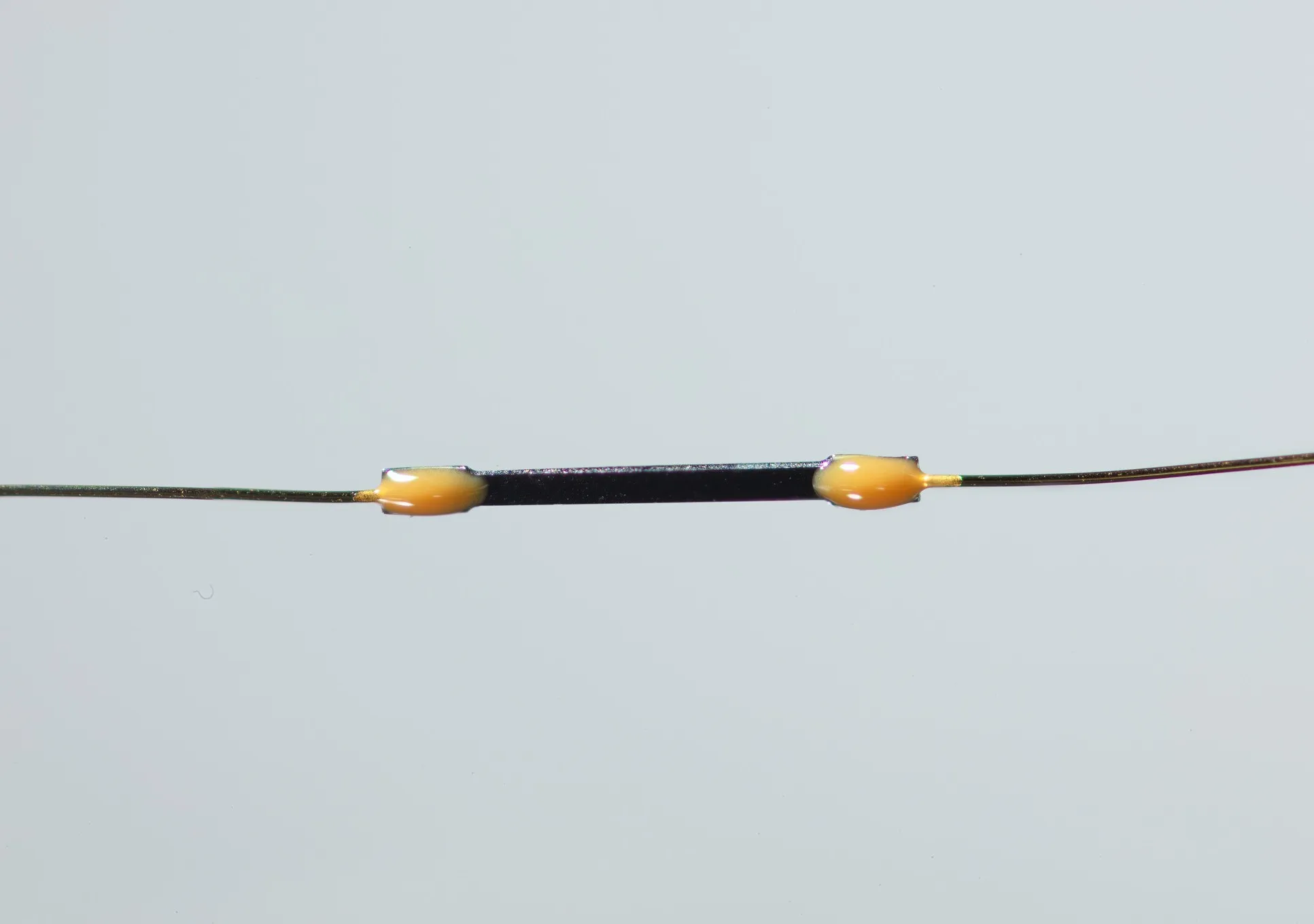

SS Bar Semiconductor Strain Gages
Piezo-Metrics SS-Bar semiconductor strain gages are made from "P" doped bulk silicon. This is a two terminal resistive device.
Key Specifications
- Available gage lengths from 0.027 to 0.250 in. long
- Gage resistance from 15 Ohm's to 1150 Ohm's
SS U Semiconductor Strain Gages
Piezo-Metrics SS-U semiconductor strain gages are made from "P" doped bulk silicon. This is a two terminal resistive device.
Key Specifications
- Available gage lengths from 0.018 to 0.095 in. long
- Gage resistance from 350 Ohm's to 10,000 Ohm's
MST Bondable Terminals
Piezo-Metrics MST bondable terminals / Solder tabs.
Key Specifications
- Available in 5 different configurations & sizes from MST035 to MST125
- MST solder tabs are available in strips of box counts
