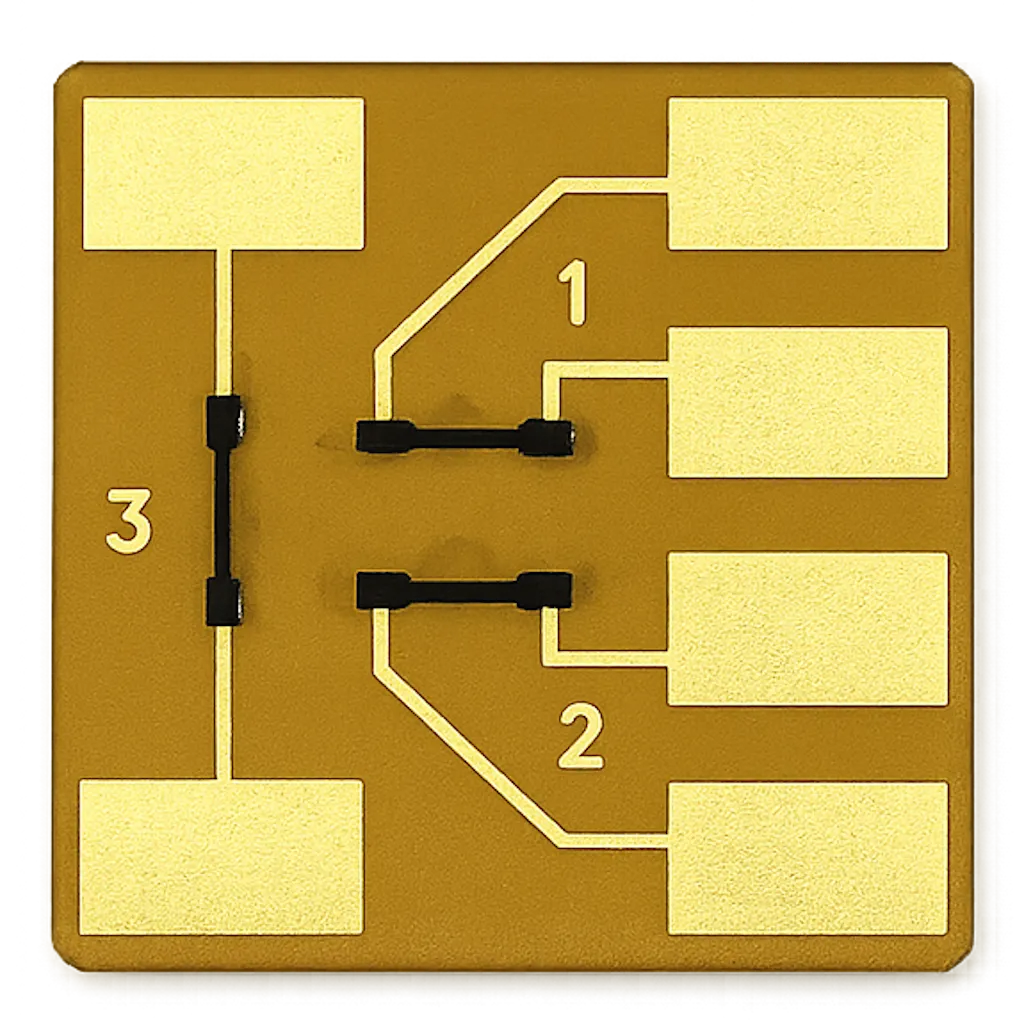

RSGH Semiconductor Strain Gage Half-Bridge Rosettes
Piezo-Metrics' semiconductor strain gage half-bridge rosettes use the same surface preparation techniques, bonding procedures and electrical connection methods as those used for metal foil strain gage rosettes with the added advantage of having a Gage Factor (GF) that is up to 70 times greater than that of a standard metal foil strain gage.
Key Specifications
- Two types of half-bridge Rosettes: Bending-Load & Torque-Component
- RSGH Half-Bridges utilizes Piezo-Metrics Precision_Matched™ SC Semiconductor strain gages manufactured to our newest technological processes
- Available in gage resistance of 500 Ohms
- Rosette gage factor (GF) is up to 70 times greater than metal foil gauges
