MPT50 Dual Pressure & Temp Threaded Mount

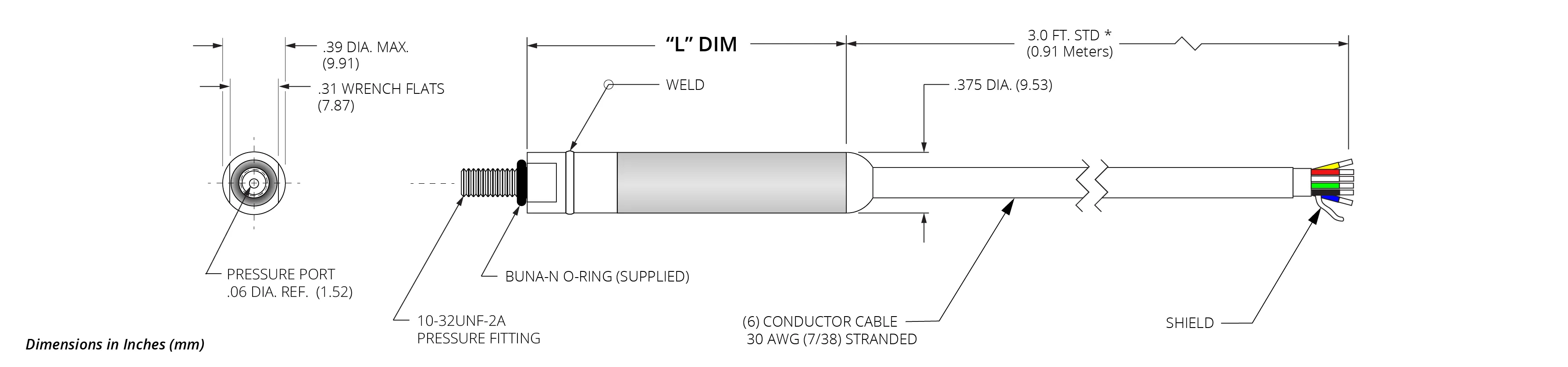

Piezo-Metrics Model MPT50 is a 10-32UNF threaded mountable, miniature, low cost, general use dual pressure & temperature transducer. These transducers are made of corrosive resistant titanium (6AL4V) and utilize high reliability semiconductor strain and temperature gages bonded directly to the inside surface of the machined diaphragm. This results in a pressure transducer with high resolution, accuracy, reliability and stability. The Model MPT50 is available in either Gage (PSIG), Absolute (PSIA), or Sealed Reference (PSIR) pressure configurations. Long term stability versions are available.
Key Specifications
- Output: 100mV Output @ 5.00Vdc

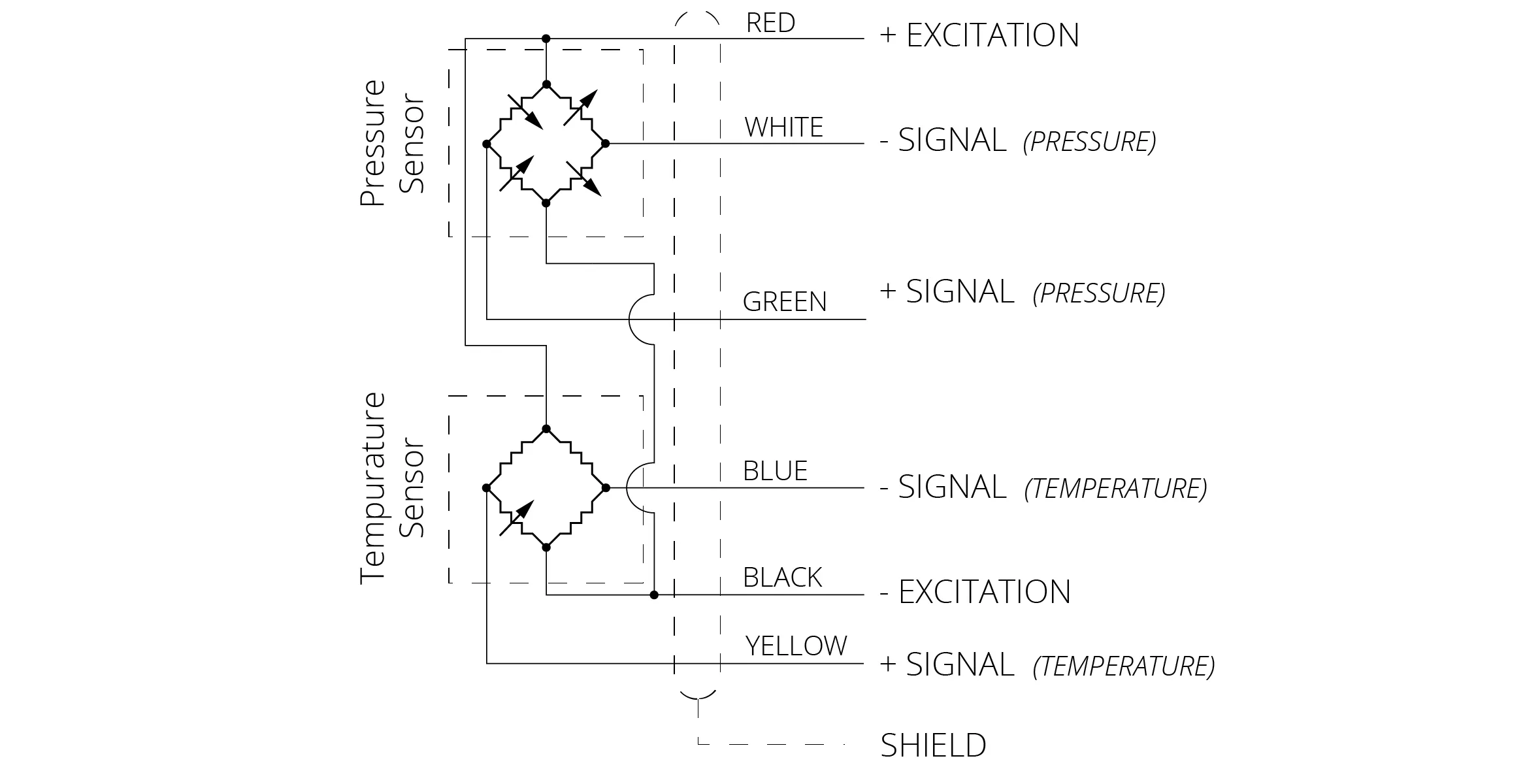

- Input configuration: Single Input with separate outputs for pressure & temperature
- Pressure ranges: 50 to 7000 PSI
- Pressure type: Gage, Absolute or Sealed Reference
- Static Error Band: +/- 0.50 or +/-0.25 %FS (BFSL) *
- Standard Balance (Zero): +/- 3.00 mV or +/- 2.00mV *
- Full Scale Sensitivity: 20.0 +/- 2.00mV/V *
- Compensated temperature range: 30°F to 130°F *
- Construction: Corrosive resistant titanium (6AL4V)
- Diaphragm: High reliability semiconductor strain and temperature gages bonded directly to inside surface of machined diaphragm
- Performance: High resolution, accuracy, reliability and stability
- Available configurations: Gage (PSIG), Absolute (PSIA), or Sealed Reference (PSIR)
- Long term stability versions: Available
- Custom calibration: Custom calibration specifications are available – consult factory
