MPT502 Dual Pressure & Temp Threaded Mount
Piezo-Metrics Model MPT502 is a threaded mountable, miniature, low cost, general use dual pressure & temperature transmitter. These transmitters are made of corrosive resistant titanium (6AL4V) and utilize high reliability semiconductor strain gages bonded directly to the inside surface of the machined diaphragm. This results in a pressure transmitter with high resolution, accuracy, reliability and stability. The Model MPT502 is available in either Gage (PSIG), Absolute (PSIA), or Sealed Reference (PSIR) pressure configurations. Long term stability versions are available.
Key Specifications
- Output: 4-20ma Output @ 24 Vdc Input (Input Range: 12.0 – 30.0Vdc)

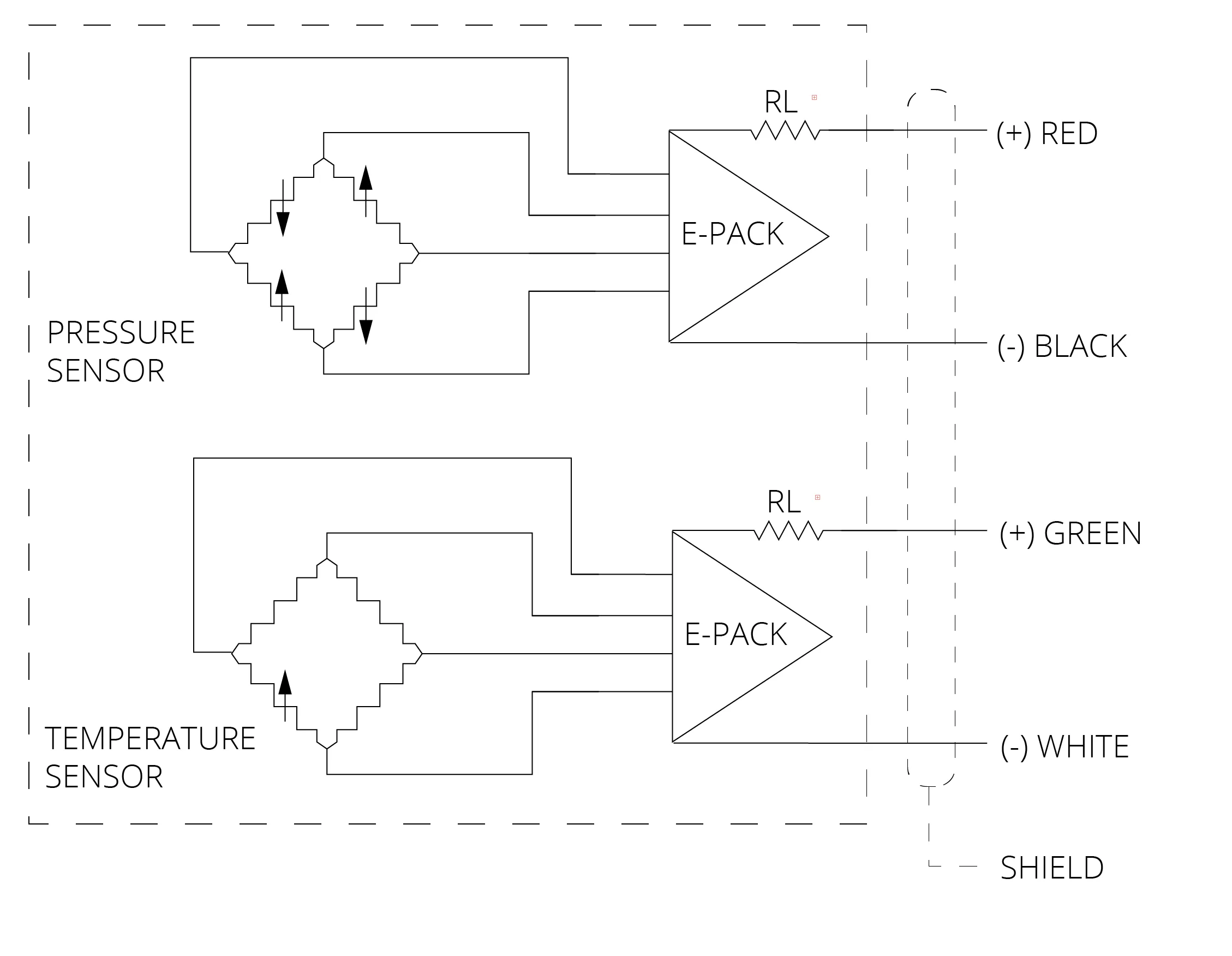

- Separate outputs: Separate outputs for pressure & temperature measurements
- Pressure ranges: 50 to 7000 PSI
- Pressure type: Gage, Absolute or Sealed Reference
- Static Error Band: +/- 0.50 or +/-0.25 %FS (BFSL) *
- Standard Balance (Zero): 4.00+/- 0.50mA or 4.00+/- 0.20mA *
- Full Scale Sensitivity: 16.00+/- 0.50mA or 16.00+/- 0.20mA *
- Compensated temperature range: 30°F to 130°F *
- Construction: Corrosive resistant titanium (6AL4V)
- Diaphragm: High reliability semiconductor strain gages bonded directly to inside surface of machined diaphragm
- Performance: High resolution, accuracy, reliability and stability
- Available configurations: Gage (PSIG), Absolute (PSIA), or Sealed Reference (PSIR)
- Long term stability versions: Available
- Custom calibration: Custom calibration specifications are available – consult factory
