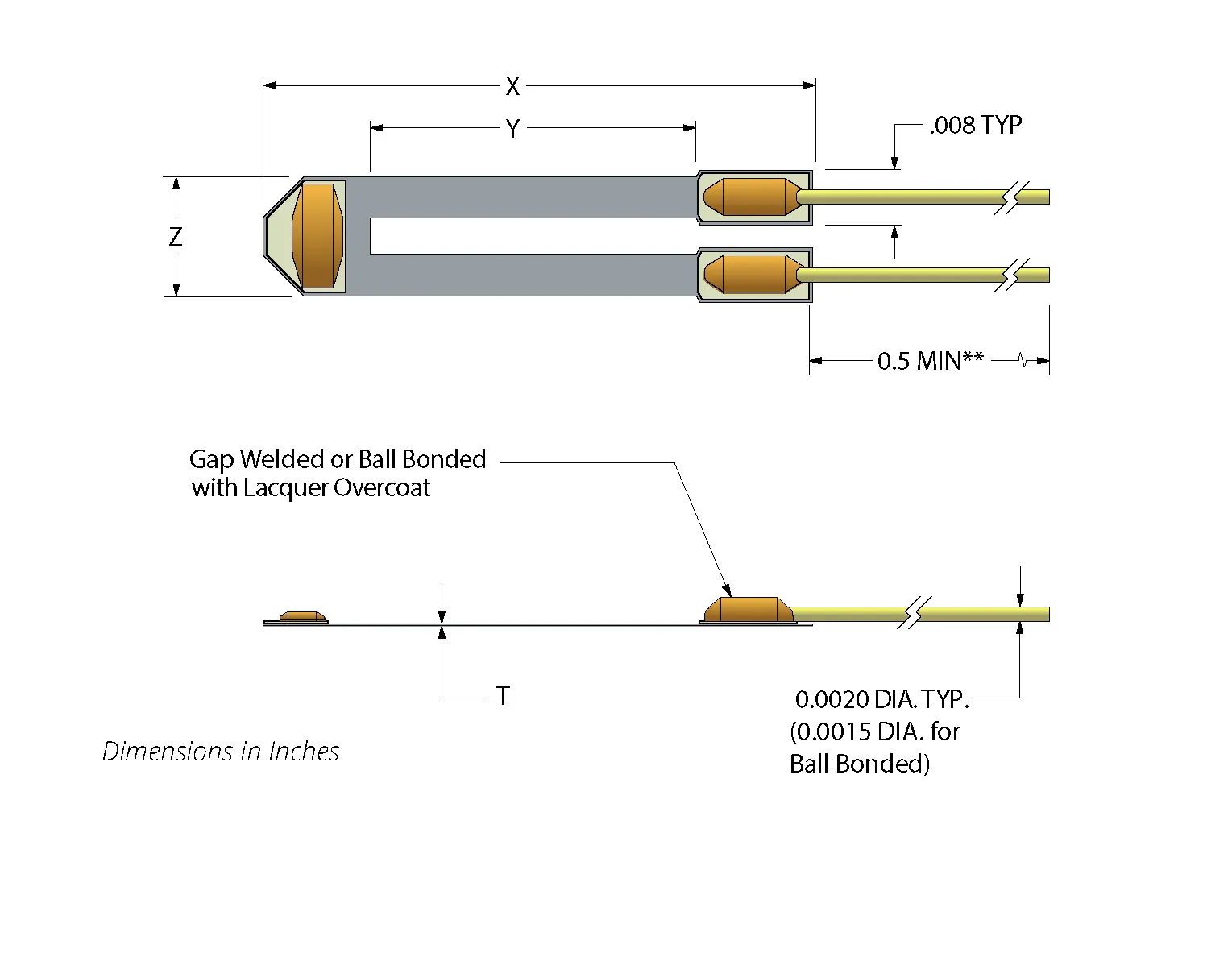

SS U Semiconductor Strain Gages
Piezo-Metrics SS-U semiconductor strain gages are made from "P" doped bulk silicon. This is a two terminal resistive device. The silicon is micro machined to shape, thus eliminating molecular dislocation or cracks, thereby optimizing performance.
Key Specifications
- Available gage lengths: from 0.018 to 0.095 in. long
- Gage resistance: from 350 Ohm's to 10,000 Ohm's
- Operating strain: +/-2000u inch/inch (+/-3000u inch/inch max.)
- Typical Gage Factor: from 100 to 165
- Typical TCR: from 8 to 42%/100°F
- Linearity: better than 0.25%
- gage set matching: up to 16 gages
- Individual gage test data: available
- Custom gage lead forming: available – consult factory
