RSGH Semiconductor Strain Gage Half-Bridge Rosettes

Semiconductor strain-gage performance. Familiar rosette installation. Contact Piezo-Metrics to evaluate our patented semiconductor strain gage rosettes.

Download the Datasheet Request an Evaluation Quote

New to installing a semiconductor rosette? See the installation guides and video tutorial.

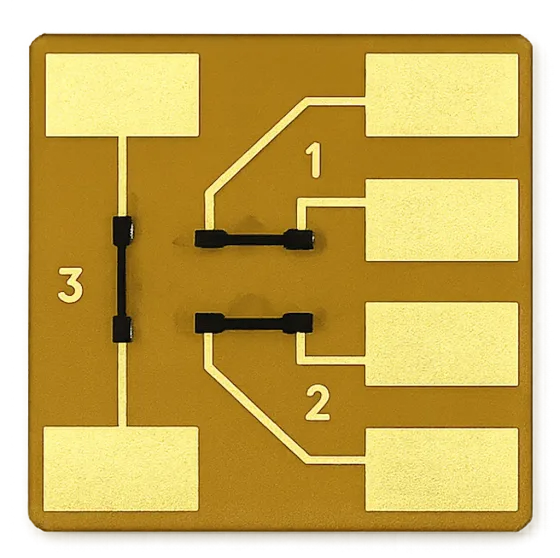

RSGH Bending-Load half-bridge rosette — RSGH Bending-Load (left) and Torque-Component (right) rosettes

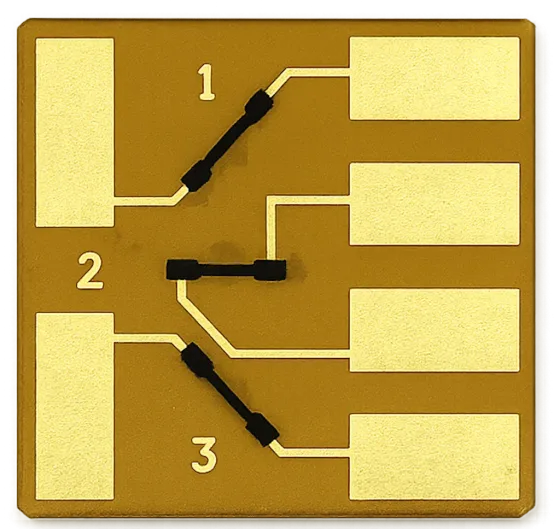

RSGH Torque-Component half-bridge rosette — RSGH Bending-Load (left) and Torque-Component (right) rosettes

150
Gage factor, up to
70×
Sensitivity of standard metal foil gages
500 Ω
Gage resistance
2
Configurations: Bending-Load & Torque-Component

Why RSGH

Resolve very small strains with confidence

RSGH rosettes give sensor designers the output of a semiconductor gage in the rosette format their teams already know how to install.

Gage Factor up to 150

Our RSGH rosettes feature gage factors of up to 150, yielding a sensitivity 70 times greater than standard metal foil strain gages.

Resolve very small strains with confidence.

Familiar Rosette Installation

Uses familiar rosette surface preparation, bonding, and electrical connection methods. Step-by-step installation resources:

Technical Note TN-4: Rosette Installation with Cyanoacrylate (PDF)
Technical Note TN-6: Rosette Installation with Two-Part Epoxy (PDF)
Video tutorial: Piezo-Metrics Series 04 Rosette Installation (YouTube)

Two Configurations

Bending-Load and Torque-Component half-bridge rosettes to match your measurement application.

Precision_Matched™ Gages

Built with Piezo-Metrics Precision_Matched™ SC semiconductor strain gages, 500 Ω gage resistance, manufactured to our patented processes.

Configurations

Choose the rosette for your load path

Both configurations share the same compact footprint and pad layout.

Bending-Load

Half-bridge rosette for bending-load measurement.

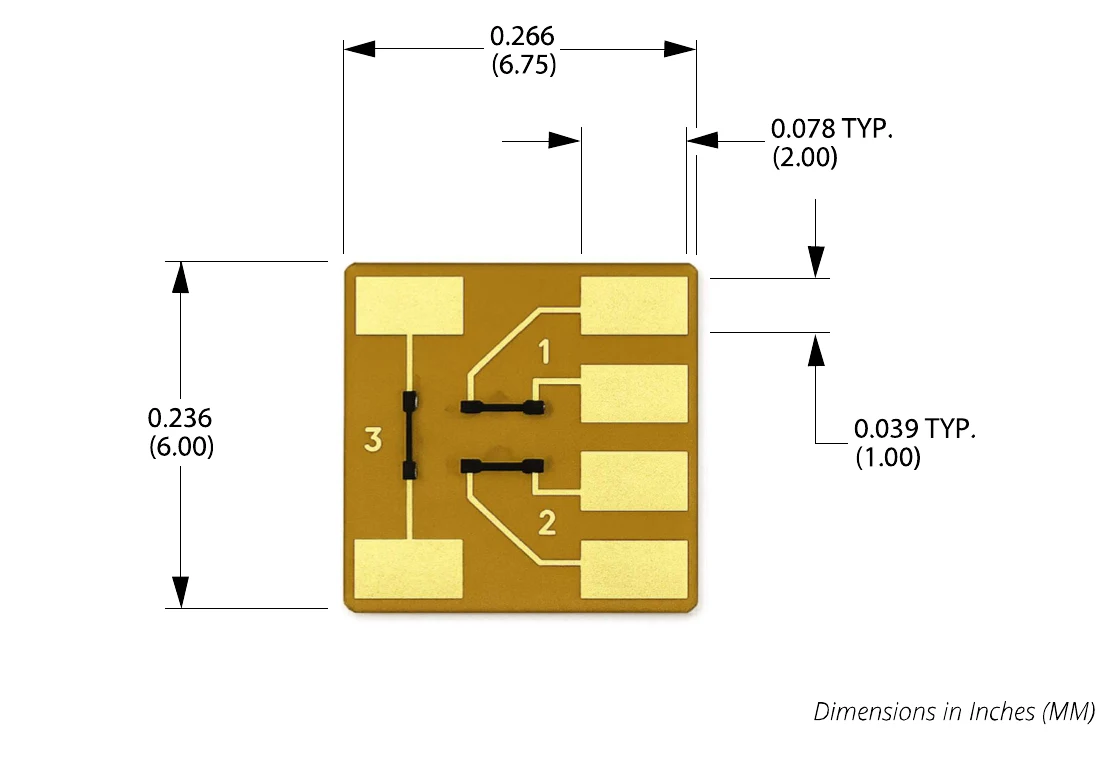

0.266 × 0.236 in (6.75 × 6.00 mm)

Torque-Component

Half-bridge rosette for torque-component measurement.

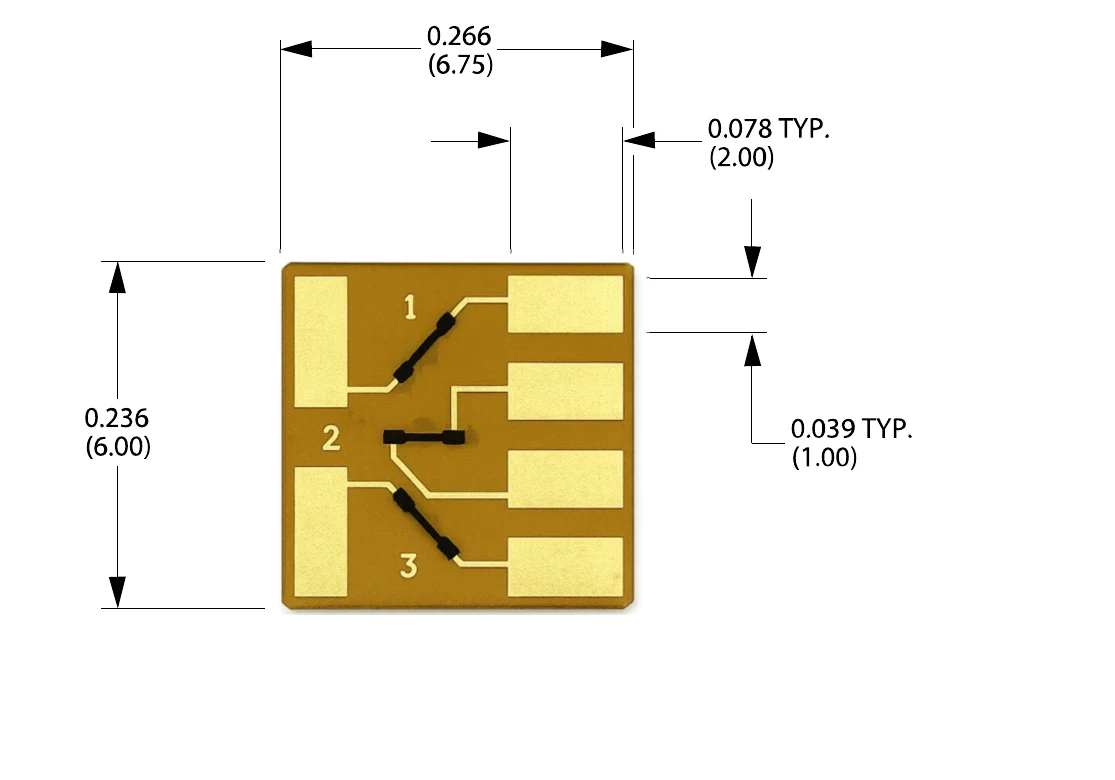

0.266 × 0.236 in (6.75 × 6.00 mm)

Installation Resources

Install RSGH rosettes with confidence

Two technical notes cover surface preparation, rosette bonding, instrumentation cable soldering and protective coating for each adhesive. The video tutorial demonstrates rosette installation.

Technical Note TN-4 · PDF
